خط ریسندگی پنبه ای رینگ زینسر مدل ۳۵۱ متصل به اتو کونر اشلاف هورس

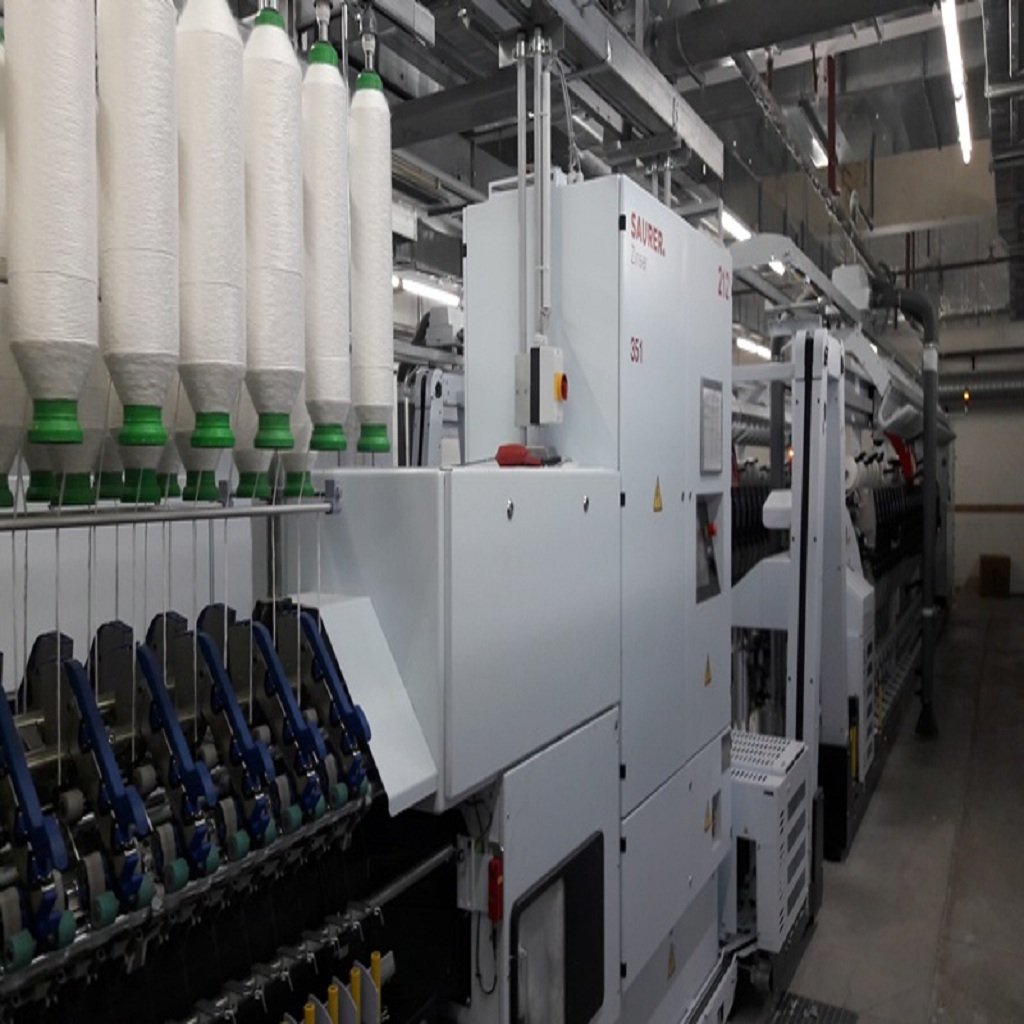

one Set Zinser 351 Ring Frame Linked to Schlafhorst Autoconer X5 Winder Zinser 351 Ring:
Quantity: 1, Year: 2014, No. of spindles: 1152, Ring diameter: 42 mm, Gauge: 70mm,
Ring spinning type: Bracker Titan, Ring profil: Normal, Tube length: 230mm,
Tube conicity: 1:38, With Co-We-Mat type 395V, El. power: 3 x 400V, 50Hz,
Main motor: 65Kw, With creel Zinser for flyer bobbins, 4 rows,
Length of bobbins: 450mm, Diameter of bobbin: max 130mm,
Draw system: PK2630SE, Entrance upper cylinder: LP1002,
Middle upper cylinder: LP1003, Exit upper cylinder: LP1002,
Size of upper cylinders: D19 – D30 – D28, Coating upper cylinder: Accotex J470 round, 70o Shore, Upper holder: OH2122, Upper belts: Accotex 78210G, Lower diameter
cylinders : 32 – 30,5 – 32mm, Lower belts : Accotex 78210G,
Size of lower belts: D79 x 30 x 1,1mm, Clean cylinders, Synchrodraft,
With suction tubes
linked to Winder Schlafhorst Autoconer X5 Type V :
Quantity: 1, Year: 2014, 26 heads, Traverse: 6“ / 150mm, Machine length: 15,043 m,
Machine width: 1,940 m, CTS+Caddystation ( Continuous Transfer Station),

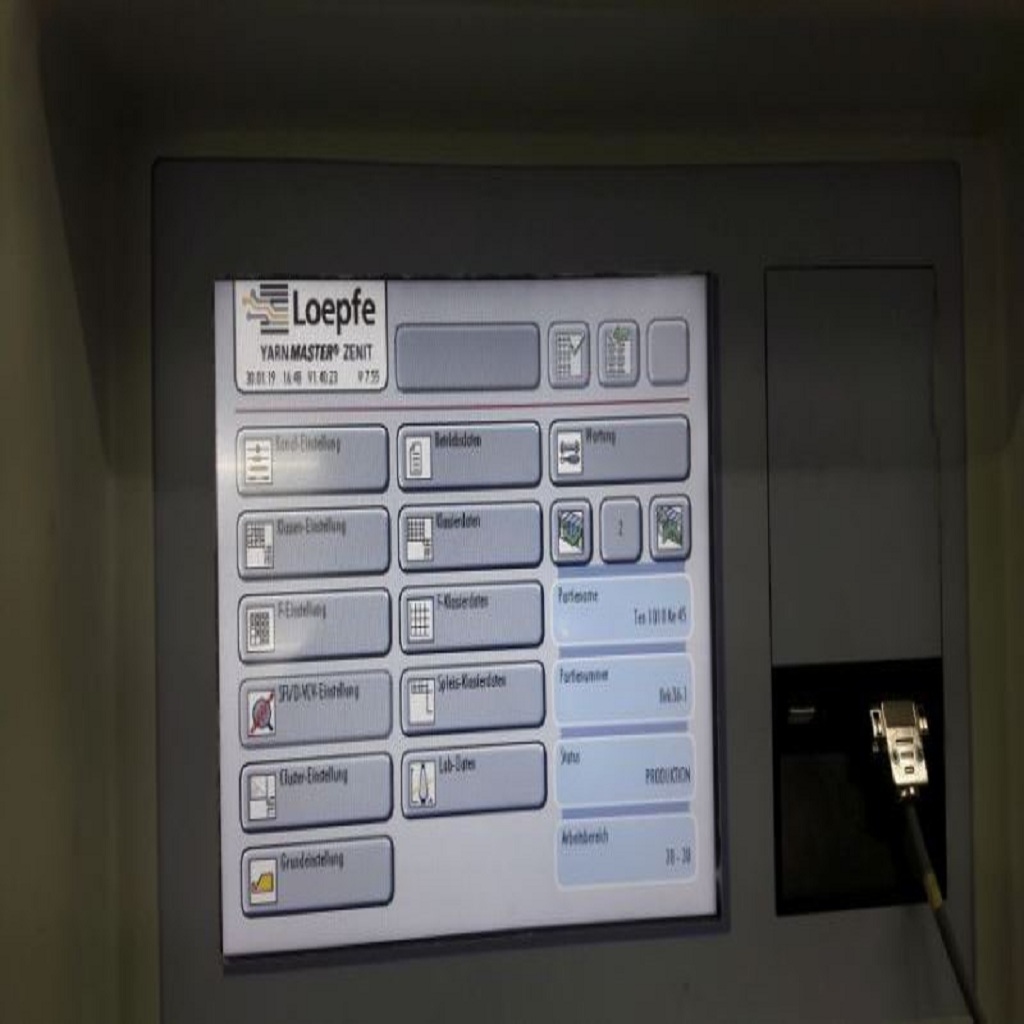

3 x 400V, 50Hz, Auto Vacuum Control ( AVC), Wwith splicer, Yarn clearer: Loepfe
Voltage: 400 V
Hertz: 50 Hz
